Introduction

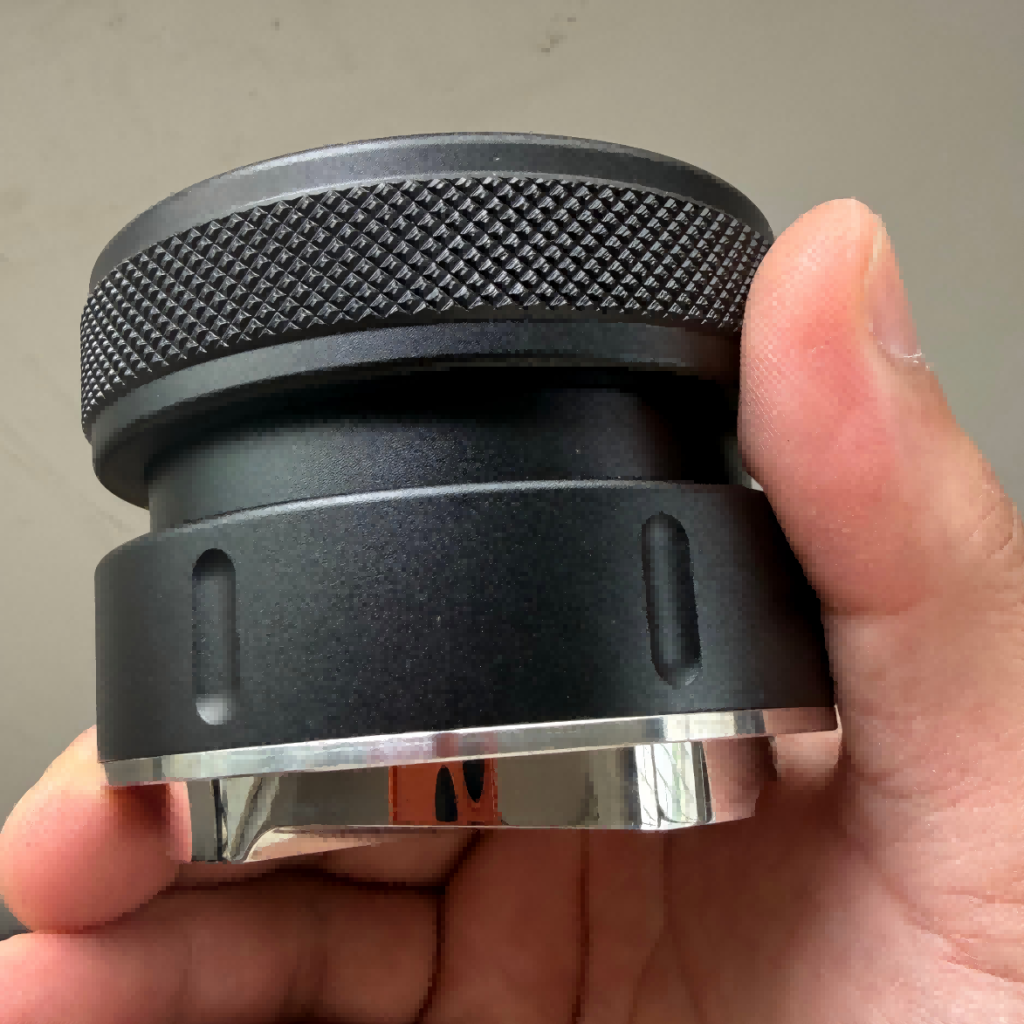

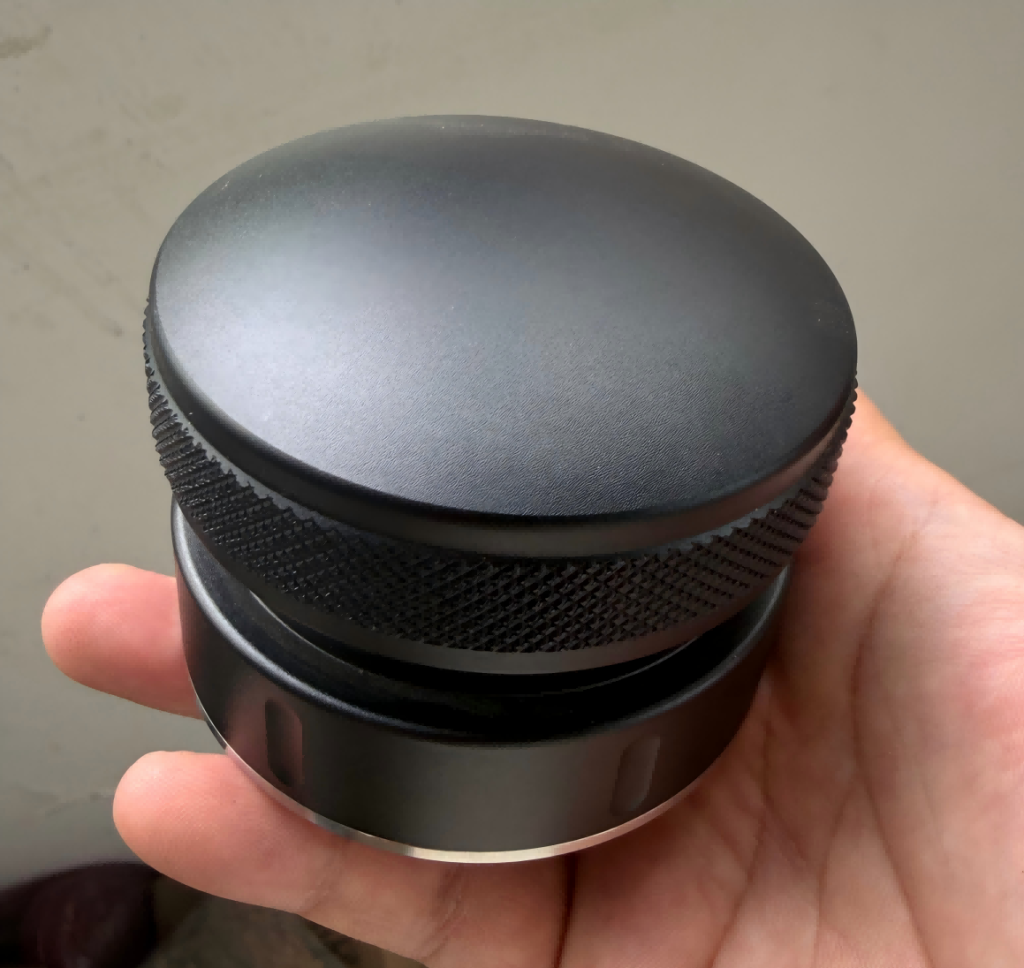

In precision CNC aluminum machining, anodizing is the most widely‑used surface finishing process for aluminum components, commonly applied to medical‑device assemblies, instrument housings and precision structural parts. Many mechanical engineers encounter a subtle yet troublesome problem: threads pass go‑no‑go gauge testing perfectly right after CNC machining, yet some threaded holes fail the no‑go gauge test after anodizing.
This risk becomes critical for projects for customers such as a manufacturer of health‑monitoring medical hardware. Compact‑size medical hardware often adopts tiny fine threads like M1.4×0.3, with merely 2‑3 engaged threads and a thread engagement length below 1 mm. Minor chemical erosion brought by anodizing can create hidden risks of thread stripping. If the risk goes undetected, full‑batch shipments may suffer assembly failures at the customer’s end, resulting in costly rework, product returns and project delays. At Lenchor , we frequently receive inquiries about process conflicts between internal threads and aluminum surface treatments.
Why Does Anodizing Damage Aluminum Threads?
Anodizing is an electrochemical reaction relying on mildly corrosive chemical baths. A protective aluminum‑oxide layer forms across the whole aluminum surface — including the inner thread profile inside threaded holes.
- Minor thread‑profile erosion occurs: the thread pitch diameter expands slightly. For large‑size threads with sufficient engaged turns, this marginal change is barely noticeable.
- Risk multiplies for short‑engagement threads. Take M1.4×0.3 fine thread as an example: pitch =0.3 mm, only 2‑3 effective threads give a total engagement length of just 0.9 mm. With very limited load‑bearing thread teeth available, extra material loss from anodizing pushes thread clearance out of tolerance.
- Typical symptom: Go‑gauge screws thread in smoothly, while the no‑go gauge cannot stop as required. Without dedicated thread tolerances specified on drawings, the industry baseline standard requires “go‑gauge passes, no‑go‑gauge stops”. Parts failing no‑go check do not meet standard factory acceptance criteria.
Important note: Defects appear intermittently on partial holes, so sampling inspection can easily miss them. While consumer‑grade products might sometimes work under light‑load conditions, medical‑grade precision machined components cannot be approved for shipment based on empirical judgment. Under assembly torque or equipment vibration, partial threads are highly prone to stripping or loose fastening.
Four Practical Solutions for Anodizing‑Induced Thread Damage
Below are four proven industrial solutions sorted by reliability and cost. You can select according to application requirements, thread specifications and project budget.
Option 1: Post‑anodizing tap rework (Most reliable, preferred for medical hardware)
Process flow: CNC tapping → Anodizing → Post‑anodize re‑tapping
Pros: Re‑cuts threads to remove the eroded anodized layer, fully restores go‑no‑go compliance and original thread strength. Ideal for high‑reliability medical‑device components.
Cons: Adds extra processing cost. Tiny threads such as M1.4 carry risk of tap breakage and demand well‑qualified machining capability.
Option 2: Pre‑anodizing thread tolerance offset (Optimized for mass production)
Pre‑offset thread pitch diameter during CNC tapping, reserving material allowance to compensate for anodizing erosion. After anodizing completes, threads land within target tolerance window.
Pros: No secondary re‑tapping required; cost‑effective for large‑volume orders of 600 pcs or more.
Cons: Requires stable anodizing‑film‑thickness data from your surface‑treatment vendor. Film‑thickness fluctuation will cause thread out‑of‑tolerance. Poor for small‑batch prototyping due to high setup cost.
Option 3: Masking threaded holes before anodizing
Apply high‑temperature‑resistant rubber plugs to seal threaded holes prior to anodizing, blocking chemical‑bath contact with inner threads.
Pros: Thread profiles stay untouched by anodizing chemistry.
Cons: Custom tiny masking plugs for M1.4 micro‑threads are difficult to source and labour‑intensive to install. Edge‑leakage risk still exists around hole openings.
Option 4: Customer‑approved deviation acceptance (Highest risk; written confirmation mandatory)
Evaluate real‑world operating conditions. If threads are only used for light‑force positioning with no vibration or tensile load, negotiate with your customer to formally accept partial no‑go‑gauge penetration, with clear limits on how many turns the no‑go gauge may enter.
Critical warning: This approach is strongly discouraged for medical‑grade machined parts. Even if assembly works at first, thread failure during end‑user operation can trigger costly complaints and product recalls. Never unilaterally approve parts for shipment from your factory side. Formal written customer confirmation is non‑negotiable.
Key DFM Tips for Precision‑Machined Aluminum Projects
- Avoid overly low thread‑count designs on aluminum parts. Aim for ≥4 effective engaged threads whenever possible. Micro‑threads like M1.4 with only 2‑3 turns become high‑risk once combined with anodizing.
- Specify thread tolerances clearly on drawings. Clarify whether thread inspection happens pre‑anodizing or post‑anodizing. Do not fully rely on generic factory standards.
- Identify thread‑plus‑surface‑treatment risks during early DFM review. Many costly rework cases stem from unforeseen anodizing‑thread conflicts discovered only after finished‑part production.
During DFM reviews at Lenchor, we specifically audit thread specifications and engaged‑thread counts for anodized aluminum parts. We flag potential process risks upfront to help clients avoid expensive rework such as stripping old anodize, bead‑blasting and re‑anodizing for 600‑piece batches in our real‑world case study.
Closing Thoughts
Thread erosion from aluminum anodizing is a classic manufacturing pitfall within precision CNC machining. Many buyers and engineers treat it merely as a cosmetic or inspection issue, while ignoring real‑world failure risks such as thread stripping.
Large‑size long‑engagement threads rarely show obvious symptoms, yet micro‑threads ranging M1.0‑M2 with low thread counts represent the highest‑failure zone. When you face no‑go‑gauge failure after anodizing, do not simply approve parts just “because they seem to work”. Prioritize process‑based fixes to restore qualified threads. If deviation acceptance is unavoidable, secure formal written customer approval to prevent future quality disputes.
If you need DFM evaluation for your next CNC aluminum machining and anodizing project, visit Lenchor to explore our precision‑machining solutions.
